The 90-90-90 Rule in Ergonomics Explained
Last Updated: October 20, 2026
What Is the 90-90-90 Rule in Ergonomics?
The 90-90-90 rule in ergonomics is a simple starting point for seated desk work: picture roughly right angles at your hips, knees, and elbows. It can help you notice how your chair, desk, and equipment fit together.
You do not need to hold three exact right angles throughout the day. OSHA's guidance on working positions allows several supported postures, including a slight recline, and recommends elbow angles between 90 and 120 degrees. Comfort, support, and regular position changes matter more than matching a diagram precisely.
At GYZMOGENIX, we focus on practical home-office equipment and setup choices. Before adding a keyboard tray or monitor riser, check which adjustment your workspace actually needs.
The Three 90-Degree Angles Explained
Hip Angle: Sitting Position
The hip angle is the angle between your torso and thighs. About 90 degrees describes upright sitting; a supported recline opens that angle. Keep your back supported rather than forcing yourself to sit rigidly upright. Chair height alone does not determine the position of your spine.
Knee Angle: Leg Support
Support your feet on the floor or a stable footrest. Your knees can be around a right angle or slightly more open. Stretching the lower legs forward increases the inside knee angle; tucking the feet back decreases it.
The Canadian Centre for Occupational Health and Safety's sitting guidance recommends knees at or below hip level, feet supported, and clearance between the seat edge and the backs of the knees. These are general fit checks, not a promise to prevent circulation problems.
Elbow Angle: Arm and Wrist Alignment
Let your upper arms stay near your sides and keep your shoulders relaxed. An elbow angle of 110 degrees can fall within OSHA's recommended range. Check wrist alignment separately: the wrist should remain in line with the forearm rather than bending to reach the keys.
Setting Up Your Ergonomic Desk Setup
Start with the chair and foot support, then check the keyboard and mouse, followed by the monitor. Recheck the whole arrangement after each change. A useful adjustment in one area can affect the space available elsewhere.
Desk Height and Surface Positioning
A desk's height should suit your body and the work you do. A fixed-height desk can work well if the overall arrangement lets you reach the keyboard comfortably. If the work surface is too high, check chair and footrest options or a compatible adjustable keyboard tray. Leave enough room for your thighs and knees.

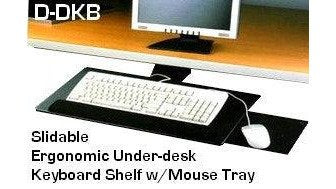

The DKBDK Ergonomic Keyboard Shelf with Mouse Tray is listed with slide-in/out movement, height adjustment, tilt, and rotation. Its mouse platform can slide to either side. The listing specifies at least 18 inches of clear depth underneath the tabletop for full retraction. Measure the mounting area and check the installation instructions before buying; the tray cannot be assumed to fit every desk.
Monitor Placement and Distance
Place your main screen in front of you, with its top at or slightly below eye level. OSHA's monitor guidance gives a general viewing distance of 20 to 40 inches, adjusted so you can read without leaning. Increase text size if needed. People using bifocals may need a lower screen position.
The Dual Monitor Stand Riser Adjustable Desktop Organizer is listed with adjustable length and angle, plus storage underneath. Its listing does not establish adjustable height. Check the actual rise and your monitor's own adjustment range before choosing it for a height problem.
Keyboard and Mouse Positioning
Keep the keyboard directly in front of you, with the mouse nearby. Adjust the equipment so your wrists stay straight and you do not have to lift your shoulders or reach far forward. A desk surface or a suitable tray can work, depending on its fit.
CCOHS guidance on keyboard selection and use recommends considering the keyboard, chair, desk, and accessories together. A tilting tray may help you find a comfortable wrist position, but it does not guarantee pain relief.
View the DKBDK keyboard tray and fit requirements
Choosing the Right Chair Height for Desk Work
Choose a chair height that supports your feet and works with the input surface. If you need to raise the chair to reach the keyboard, a footrest may help. Adjust the backrest to support your lower back and check that the seat edge does not press into the backs of your knees.
Seat depth matters as well as height. You should be able to use the backrest while your thighs remain supported. OSHA's chair guidance recommends trying chairs for fit and considering their adjustability. A chair's settings should support more than one comfortable position.
Standing Desk Sitting Schedule and Position Alternation
The three-angle shortcut describes sitting. When standing, your hips and knees are no longer arranged like a seated person's. Recheck the keyboard and screen positions whenever you change desk height.
Build movement and task changes into your workday. OSHA's work-process guidance recommends frequent short pauses and gives a five-minute break from computer tasks each hour as one example. Sitting, standing, and moving can be varied according to the task and your needs; there is no single interval everyone must follow.
What the 90-90-90 Rule Can and Cannot Tell You
The rule is a quick way to begin checking workstation fit. It cannot diagnose back pain, establish the cause of symptoms, or guarantee better circulation, productivity, or long-term health. An accessory's adjustment features are useful only when they suit your equipment and body.
Do not assume persistent pain, tingling, or numbness means you need to force a joint to exactly 90 degrees. Seek advice from a qualified health professional or an appropriate workplace ergonomics specialist.
Adjusting the Rule for Your Individual Needs
In a shared workspace, each person should recheck the chair, input devices, and screen. Make one change at a time and assess whether it improves the fit for the task. Avoid treating a single photograph or angle as a universal target.
If you need a riser with selectable heights, the 3-Height Adjustable Monitor Stand Riser is listed with three settings: 3.93, 4.73, and 5.52 inches. Check its size and your equipment's requirements before ordering. Product details and availability can change; review the current listing.
Conclusion
Use the 90-90-90 idea as an initial setup check. Then choose comfortable support, keep equipment within easy reach, and make room for position changes throughout the day. Buy accessories to address a measured fit problem.
Frequently Asked Questions
What is the 90-90-90 rule for sitting?
It is a shorthand for roughly right angles at the hips, knees, and elbows during seated desk work. Use it as a starting point and adjust for your body, equipment, and task.
How do you set up a chair using the 90-90-90 rule?
Check foot support, seat height and depth, and the backrest together. Keep space behind the knees and make sure you can use the keyboard comfortably. A footrest may help when the chair must be raised.
Does the 90-90-90 rule apply to standing desks?
The three-angle shortcut describes sitting. When you stand, recheck your screen and input devices for the new position rather than trying to keep the seated hip and knee angles.
How often should you change positions while working at a desk?
Change position regularly and include short breaks from computer tasks. OSHA gives a five-minute break each hour as an example. Adjust your routine to your task and individual needs rather than relying on a universal sit-stand schedule.
